The goal of this project was to try an end-to-end approach for a self-driving car using a provided simulator. End-to-end means that the models covers the complete chain between the camera images as input and the vehicle controls as output. There are no deliberate layers in between, like an "environment model". The approach is based on a proof of concept NVIDIA did with a real car.
I started with reading articles and blog posts about the topic, especially NVIDIAs paper on their End-To-End approach to self-driving cars and Sentdex' Python Plays GTA V project. For the project we were provided with some starter code and a simulator to a) collect training data and b) have the model drive in it.
To pass the project, the car had to drive around the first track autonomously.
The inspection of track 1 lead to the some observations and challenges in the project:
- Simple, very similar graphics for the whole track 1. Will be easy to learn but prone to overfitting.
- Clockwise track with mostly long left bends. Leads to an unbalanced, left-heavy dataset.
- The second Track in the simulator is very different looking, with lots of sharp bends and vertical variations. Generalizing from the first track to the second will be a challenge or maybe even impossible.
To tackle the overfitting-prone, unbalanced dataset a data cleaning and augmentation was implemented.
To acquire training data I used an Xbox 360 controller and drove 4 laps and tried to keep in the center of the track. I also recorded 2 laps driving the track in reverse direction. Finally I recorded recovery scenarios where I drove the vehicle from the left or right side back to the center of the track.
A big percentage of the data points were driving straight as the histogram shows which leads to a big bias for going straight. I implemented a function to clean the data by dropping most, but not all data point with a steering angle of 0. The function also allows to drop steering angles above a margin but this wasn't used in the end.
def clean_data(driving_log, upper_angle=2.0, zero_frac=0.1):
# clean the driving log data
# Safe small number of sample of going straight
zero_lines = driving_log[driving_log['Steering Angle'] == 0]
zero_lines_sample = zero_lines.sample(frac=zero_frac, random_state=42)
# Drop all samples of driving straight
driving_log = driving_log[driving_log['Steering Angle'] != 0]
# Drop samples with large steering angles left and right
driving_log = driving_log[driving_log['Steering Angle'] < upper_angle]
driving_log = driving_log[driving_log['Steering Angle'] > - upper_angle]
# Add some samples of driving straight back in
driving_log = pd.concat([driving_log, zero_lines_sample])
return driving_log(Note: shortened)
Data prior to cleaning:
Statistic of cleaning data routine:
Number of samples in input data: 8859
Samples going straight: 3202 , Samples steering: 5657
Number of random samples going straight that are rescued ( 10.0 % ): 320
Number after dropping large steering angles ( larger than +- 2.0 ): 5657
Number of cleaned samples with rescued samples: 5977
Data after cleaning:
Data after augmentation:
To provide the model with a Data augmentation tackles shortcomings in the dataset. This enables the extraction of more information which helps prevent overfitting and aids in generalization.
I implemented a generator loosely based on Keras ImageDataGenerator. It randomly loads images from the three different cameras and randomly augments the imaged by flipping and in-/decreasing the brightness. I also experimented with shifting the images horizontally and vertically as suggested in the NVIDIA paper, but it yielded little benefit and increased the learning time by a factor of 10.
Example of the random augmentations of one data point.
Finally the images are cropped and normalized in the Keras model.
The model was derived from the architecture used in the NVIDIA paper.
The model was extended with a cropping layer, to crop insignificant portions of the images. Then a normalization layer was added, followed by a 3 1x1 convolutional layer to let the network choose the best color space automatically.
Since the model is used by NVIDIA to drive a real car on real roads, it is probably oversized for this project. This is another reason I had to be careful about overfitting. For this I introduced Dropout at the fully-connected layers.
As optimizer the Adam Optimizer with a learning rate of 0.0001.
def nvidia_model():
model = Sequential()
model.add(Cropping2D(cropping=((62, 25), (0, 0)), input_shape=(160, 320, 3)))
model.add(Lambda(lambda x: x / 255.0 - 0.5))
# 1x1 convolution layer to automatically determine best color model
model.add(Conv2D(3, 1, 1, subsample=(1, 1), activation='relu'))
# NVIDIA model
model.add(Conv2D(24, 5, 5, subsample=(2, 2), activation='relu'))
model.add(Conv2D(36, 5, 5, subsample=(2, 2), activation='relu'))
model.add(Conv2D(48, 5, 5, subsample=(2, 2), activation='relu'))
model.add(Conv2D(64, 3, 3, subsample=(1, 1), activation='relu'))
model.add(Conv2D(64, 3, 3, subsample=(1, 1), activation='relu'))
model.add(Flatten())
model.add(Dense(100, activation='relu'))
model.add(Dropout(0.3))
model.add(Dense(50, activation='relu'))
model.add(Dropout(0.3))
model.add(Dense(10, activation='relu'))
model.add(Dropout(0.3))
model.add(Dense(1))
optimizer = Adam(lr=1e-4)
model.compile(optimizer=optimizer, loss='mse')
print('Using Nvidia model with dropout')

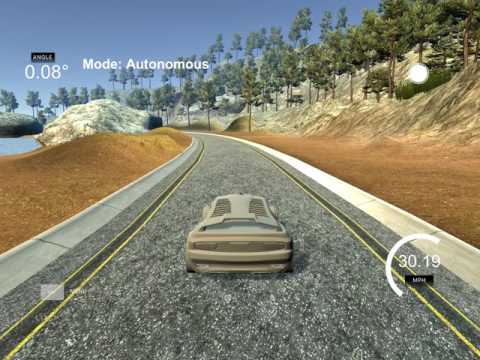

return modelI trained the model using the generator with 32 samples with 5 random augmentations each. This adds up to a batch size of 160. After splitting the data into training (80%) and validation (20%) set, I trained the model on 7087 data points and generated 35435 images per epoch. After 3 epochs the car was able to drive track 1 in the simulator, although the driving performance left room for improvement.
(YouTube Link)

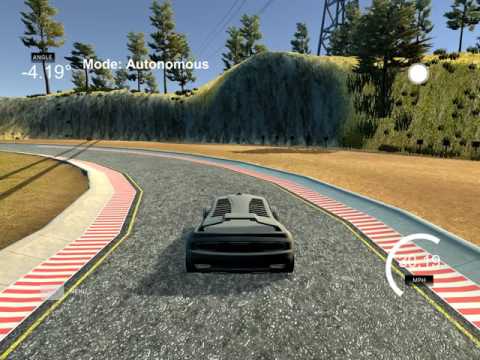

Tests showed, that training for up to 50 epochs would result in better performance. This is probably due to the random data augmentation strategy. Each epoch is training on a new, randomly generated set of 35435 images.
(YouTube Link)
After the track 1 didn't provide a big challenge, I tried my luck on the second track. I recorded 4 laps driving "the racing line" by cutting corners instead of keeping in the middle of the lane. I wanted to see if the model would be able to pick up on a more realistic driving behavior. After splitting the data I trained the model on 7960 data points and generated 39800 random images per epoch. Due to the more complex track more epochs were necessary. I used the Keras function EarlyStopping that interrupts the training when the validation loss isn't decreasing anymore and started training with 50 epochs over night.
EarlyStopping didn't interrupt the learning process because of a unstable validation loss. At about 35 epochs overfitting started but the model was still learning.

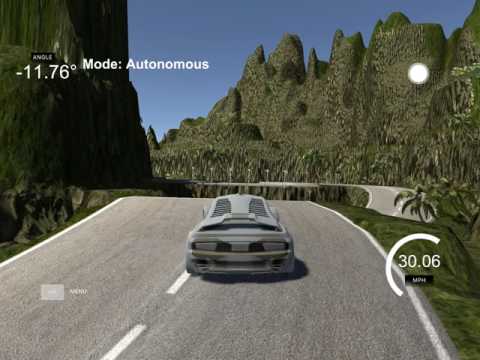

After the training the model was almost able to drive track 2 at a full 30mph. It was just cutting one corner a little too much. To fix this I recorded the corner again and fine-tuned the model by loading the pre-trained model and training it for another 2 epochs on just the data of the corner. After that the car was able to drive the second track flawlessly.
(YouTube Link)

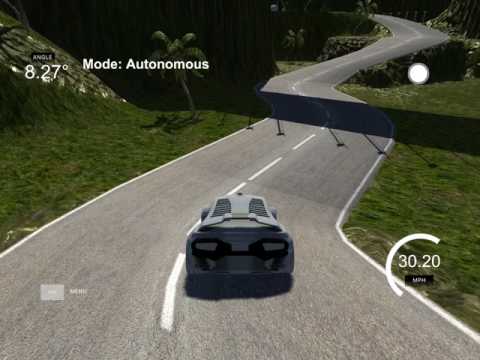

To really explore what the NVIDIA model is capable of, I trained the model on ALL my recorded data from both tracks. I used the same setup to train as above. I used 17529 data points to generate 87645 images per epoch.
In the end the model was able to learn both tracks. Interestingly the performance on track 2 was better than on track 1.
(YouTube Link)
- I was not able to generalize the learning enough for the car to drive on track 2 after only being trained on track 1. This suggest that the model is not generalizing very well. A more sophisticated augmentation may be able to drive the car on the second track even after never seeing it in training. But it may not be possible at all.
- Note that I was able to drive the vehicle on the first track after only training it on data from the second track, but with poor performance.
- Some tests with a smaller model on the first track would be interesting. It should be possible to drive track 1 with a way smaller model.
- Test with small datasets would be interesting to see if the model is able to learn track 1 from just one or even half a lap. This should be possible!
This was a fun project! It was very interesting to see what a deep neural network is capable of. I never programmed rules what a street looks like and that the car should stay on it. Nonetheless the model was able to learn the very complex track 2 and learned to drive the "racing line" around track 2 faster than I could. All was needed was data from 4 laps.
The project really showed the benefits of transfer learning, as I was able to fine-tune the model to go around one specific corner.
I learned how to use generators to be able to train on very large datasets.
